Elasticsearch

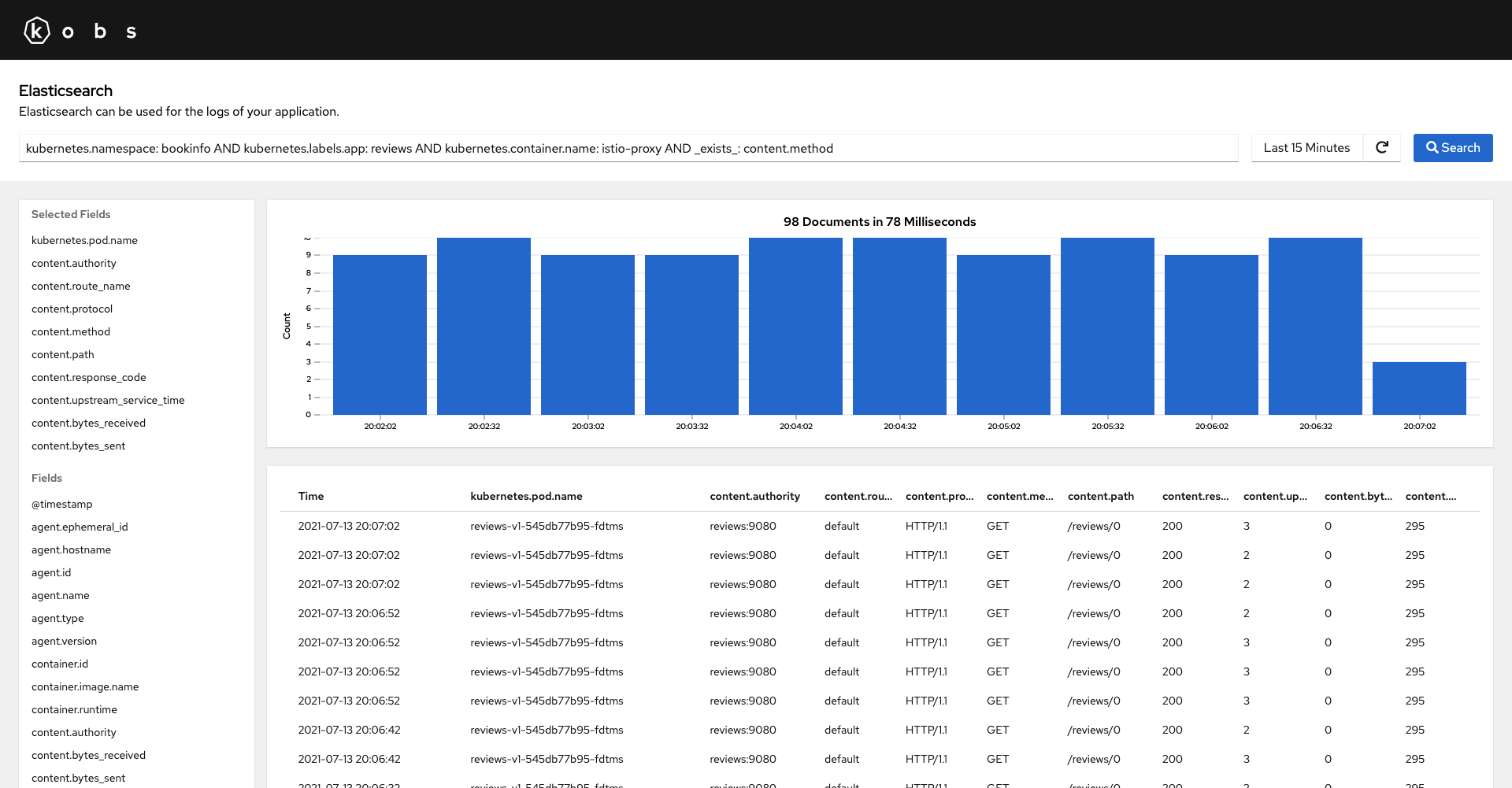

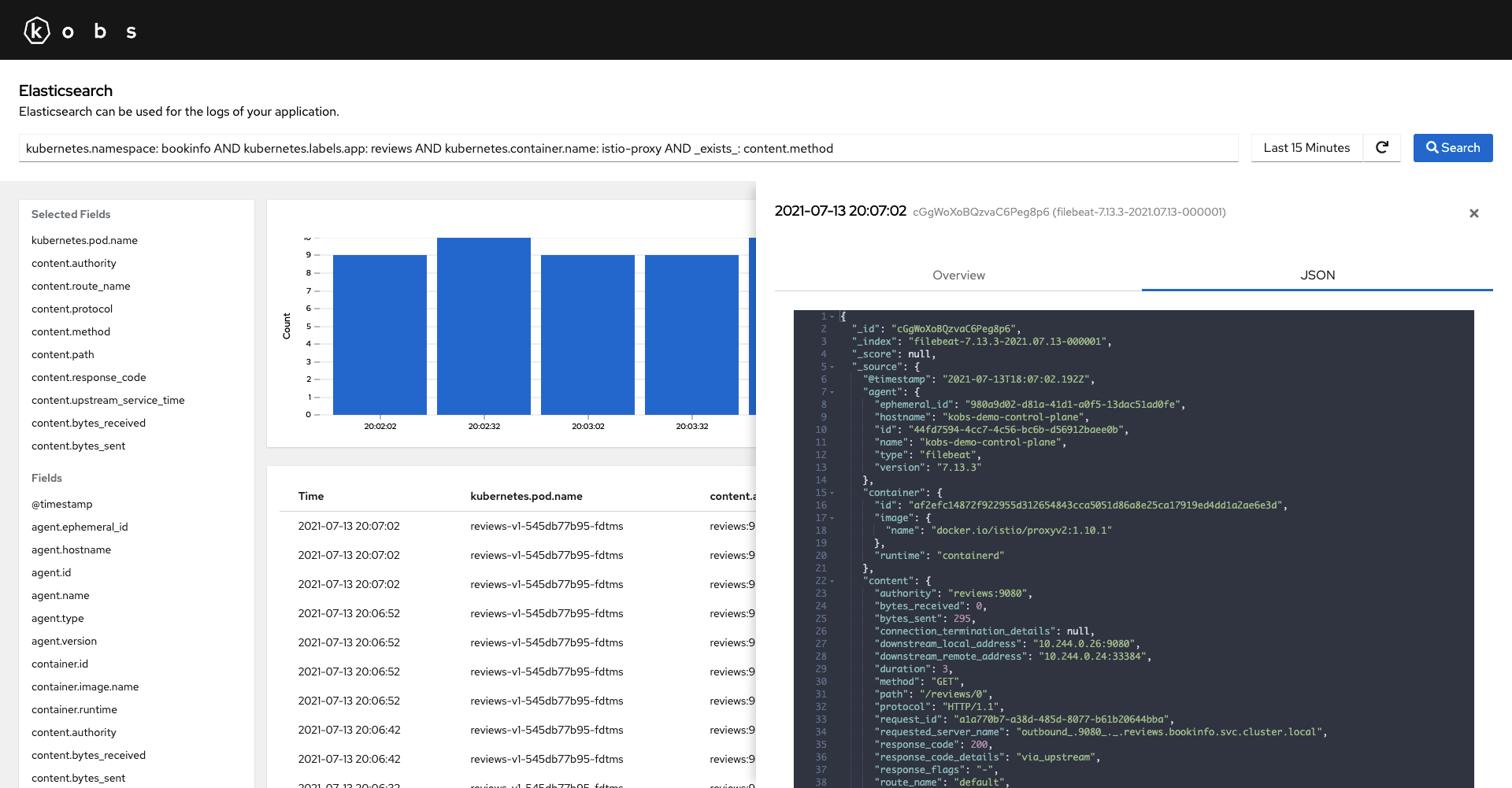

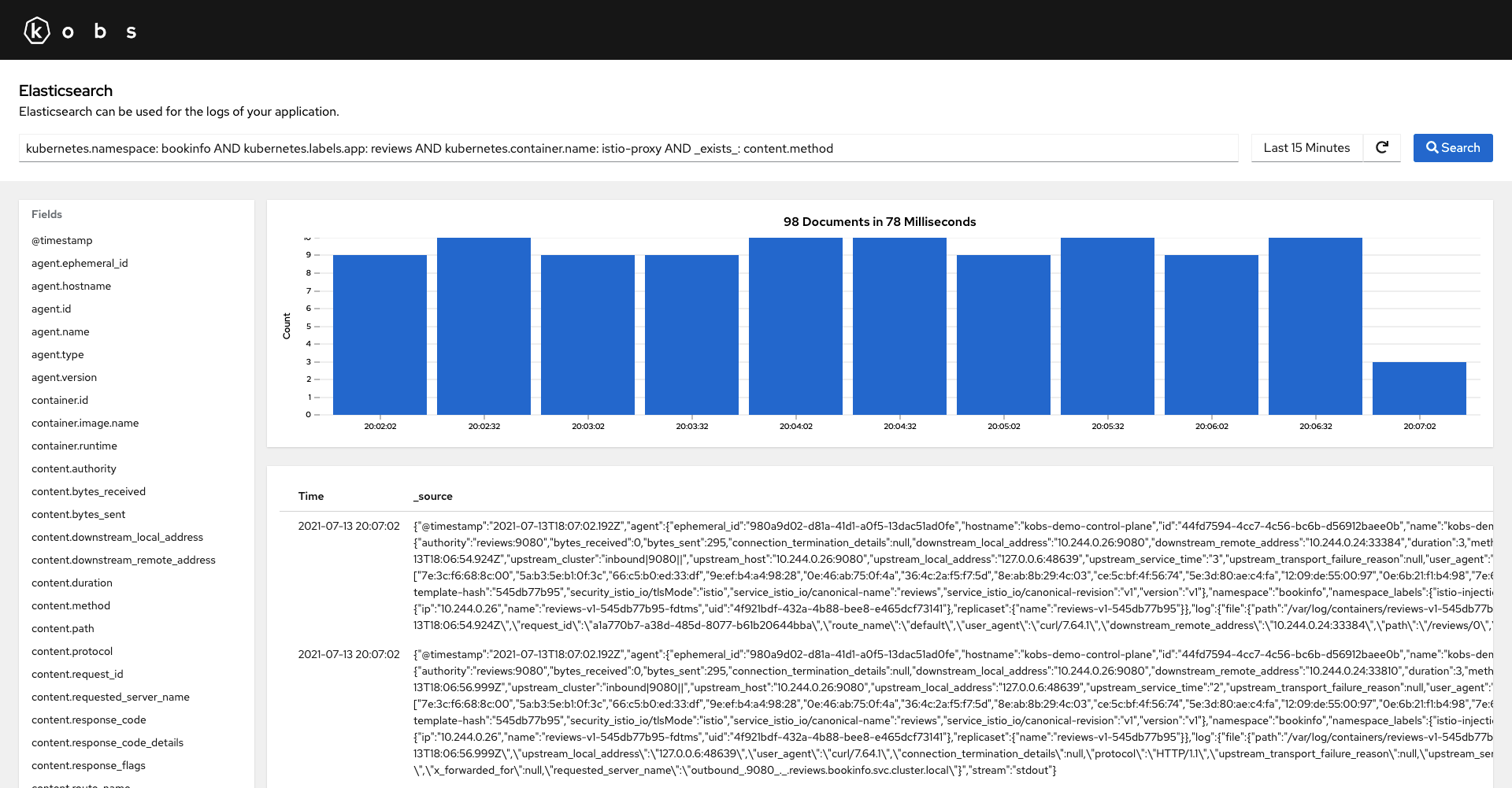

The Elasticsearch plugin can be used to retrieve logs from a configured Elasticsearch instance. You can specify a query, which is used to retireve all documents from Elasticsearch. You can also select a list of fields, to display the results in a table. From this table you can also select a single document to view the complete json representation of this document.

Configuration

To use the Elasticsearch plugin the following configuration is needed in the satellites configuration file:

Field	Type	Description	Required
name	string	The name of the Elasticsearch plugin instance.	Yes
type	elasticsearch	The type for the Elasticsearch plugin.	Yes
options.address	string	Address of the Elasticsearch instance.	Yes
options.username	string	Username to access an Elasticsearch instance via basic authentication.	No
options.password	string	Password to access an Elasticsearch instance via basic authentication.	No
options.token	string	Token to access an Elasticsearch instance via token based authentication.	No

plugins:
  - name: elasticsearch
    type: elasticsearch
    options:
      address:
      username:
      password:
      token:

Insight Options

Note

The Elasticsearch plugin can not be used within the insights section of an application.

Variable Options

Note

The Elasticsearch plugin can not be used to get a list of variable values.

Panel Options

The following options can be used for a panel with the Elasticsearch plugin:

Field	Type	Description	Required
showChart	boolean	If this is true the chart with the distribution of the Documents over the selected time range will be shown	No
queries	[]Query	A list of Elasticsearch queries, which can be selected by the user.	Yes

Query

Field	Type	Description	Required
name	string	A name for the Elasticsearch query, which is displayed in the select box.	Yes
query	string	The Elasticsearch query. We are using the Query String Syntax for Elasticsearch.	Yes
fields	[]string	A list of fields to display in the results table. If this field is omitted, the whole document is displayed in the results table.	No

Notification Options

Note

The Elasticsearch plugin can not be used to get a list of notifications.

Usage

Query String Syntax

The Elasticsearch plugins uses the query string syntax for filtering log lines.

Field Names

You can specify fields to search in the query syntax:

• where the status field contains active

status:active

• where the title field contains quick or brown

title:(quick OR brown)

• where the author field contains the exact phrase "john smith"

author:"John Smith"

• where the first name field contains Alice (note how we need to escape the space with a backslash)

first\ name:Alice

• where any of the fields book.title, book.content or book.date contains quick or brown (note how we need to escape the * with a backslash):

book.\*:(quick OR brown)

• where the field title has any non-null value:

_exists_:title

Wildcards

Wildcard searches can be run on individual terms, using ? to replace a single character, and * to replace zero or more characters:

qu?ck bro*

Regular Expressions

Regular expression patterns can be embedded in the query string by wrapping them in forward-slashes ("/"):

name:/joh?n(ath[oa]n)/

Fuzziness

We can search for terms that are similar to, but not exactly like our search terms, using the "fuzzy" operator:

quikc~ brwn~ foks~

Ranges

Ranges can be specified for date, numeric or string fields. Inclusive ranges are specified with square brackets [min TO max] and exclusive ranges with curly brackets {min TO max}.

• All days in 2012:

date:[2012-01-01 TO 2012-12-31]

• Numbers 1..5

count:[1 TO 5]

• Tags between alpha and omega, excluding alpha and omega:

tag:{alpha TO omega}

• Numbers from 10 upwards

count:[10 TO *]

• Dates before 2012

date:{* TO 2012-01-01}

Boolean operators

By default, all terms are optional, as long as one term matches. A search for foo bar baz will find any document that contains one or more of foo or bar or baz. We have already discussed the default_operator above which allows you to force all terms to be required, but there are also boolean operators which can be used in the query string itself to provide more control.

The preferred operators are + (this term must be present) and - (this term must not be present). All other terms are optional. For example, this query:

quick brown +fox -news

Grouping

Multiple terms or clauses can be grouped together with parentheses, to form sub-queries:

(quick OR brown) AND fox

Example Dashboard

---
apiVersion: kobs.io/v1
kind: Dashboard
spec:
  placeholders:
    - name: namespace
      description: The workload namespace
    - name: app
      description: The workloads app label
  rows:
    - size: -1
      panels:
        - title: Istio Logs
          colSpan: 12
          plugin:
            name: elasticsearch
            type: elasticsearch
            options:
              showChart: true
              queries:
                - name: Istio Logs
                  query: "kubernetes.namespace: {% .namespace %} AND kubernetes.labels.app: {% .app %} AND kubernetes.container.name: istio-proxy AND _exists_: content.method"
                  fields:
                    - "kubernetes.pod.name"
                    - "content.authority"
                    - "content.route_name"
                    - "content.protocol"
                    - "content.method"
                    - "content.path"
                    - "content.response_code"
                    - "content.upstream_service_time"
                    - "content.bytes_received"
                    - "content.bytes_sent"
