Grafana

The Grafana plugin can be used to search through all your Grafana dashboards and to show a list of dashboards or embed a Grafana panel within a kobs dashboard.

Grafana

Configuration

To use the Grafana plugin the following configuration is needed in the satellites configuration file:

Field Type Description Required
name string The name of the Grafana plugin instance. Yes
type grafana The type for the Grafana plugin. Yes
options.address string Address of the Grafana instance. Yes
options.username string Username to access an Grafana instance via basic authentication. No
options.password string Password to access an Grafana instance via basic authentication. No
options.token string Token to access an Grafana instance via token based authentication. No
frontendOptions.address string The address of the Grafana instance, which can be accessed by the user. No
plugins:
  - name: grafana
    type: grafana
    options:
      address:
      username:
      password:
      token:
    frontendOptions:
      address:

Insight Options

Note

The Grafana plugin can not be used within the insights section of an application.

Variable Options

Note

The Grafana plugin can not be used to get a list of variable values.

Panel Options

The following options can be used for a panel with the Grafana plugin:

Field Type Description Required
type string The panel type. This could be dashboards or panel. No
dashboards []string A list of dashboard ids to show, when the type is dashboards. To pass variables to a dashboard the following can be used: <dashboard-id>?myvar=myvarvalue Yes
panel Panel The panel which should be displayed, when the type is panel. Yes

Panel

Field Type Description Required
dashboardID string The id of the dashboard. Yes
panelID string The id of the panel. Yes
variables map A map of variables, with the name of the variable as key and the value of the variable as value. No

Notification Options

Note

The Grafana plugin can not be used to get a list of notifications.

Usage

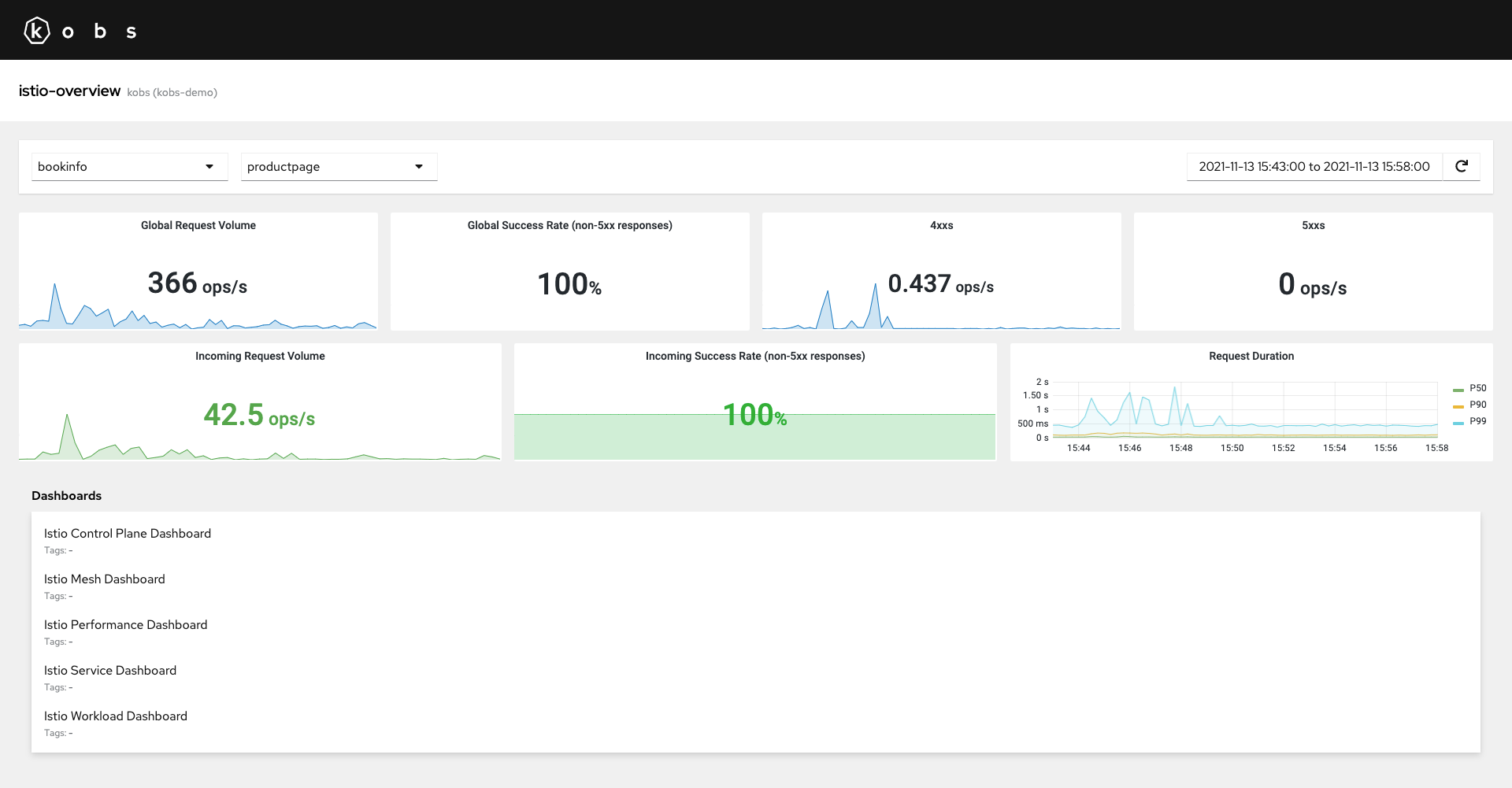

The following dashboards shows some panels from a Grafana plugin and a list of dashboards from this instance. The dashboard also uses some variables, which are then passed to the panels from Grafana.

---
apiVersion: kobs.io/v1
kind: Dashboard
metadata:
  name: istio-overview
  namespace: kobs
spec:
  title: Istio Overview
  variables:
    - name: var_namespace
      label: Namespace
      plugin:
        name: core
        options:
          type: static
          items:
            - bookinfo
    - name: var_workload
      label: Workload
      plugin:
        name: core
        options:
          type: static
          items:
            - productpage
            - details
            - ratings
            - reviews
  rows:
    - size: 1
      panels:
        - title: Global Request Volume
          colSpan: 3
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: G8wLrJIZk
                panelID: "20"
        - title: Global Success Rate
          colSpan: 3
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: G8wLrJIZk
                panelID: "21"
        - title: 4xx
          colSpan: 3
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: G8wLrJIZk
                panelID: "22"
        - title: 5xx
          colSpan: 3
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: G8wLrJIZk
                panelID: "23"

    - size: 1
      panels:
        - title: Incoming Request Volume
          colSpan: 4
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: UbsSZTDik
                panelID: "12"
                variables:
                  var-datasource: default
                  var-namespace: "{% .var_namespace %}"
                  var-workload: "{% .var_workload %}"
                  var-qrep: destination
                  var-srcns: All
                  var-srcwl: All
                  var-dstsvc: All
        - title: Incoming Success Rate
          colSpan: 4
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: UbsSZTDik
                panelID: "14"
                variables:
                  var-datasource: default
                  var-namespace: "{% .var_namespace %}"
                  var-workload: "{% .var_workload %}"
                  var-qrep: destination
                  var-srcns: All
                  var-srcwl: All
                  var-dstsvc: All
        - title: Request Duration
          colSpan: 4
          plugin:
            name: grafana
            options:
              type: panel
              panel:
                dashboardID: UbsSZTDik
                panelID: "87"
                variables:
                  var-datasource: default
                  var-namespace: "{% .var_namespace %}"
                  var-workload: "{% .var_workload %}"
                  var-qrep: destination
                  var-srcns: All
                  var-srcwl: All
                  var-dstsvc: All

    - size: 3
      panels:
        - title: Dashboards
          plugin:
            name: grafana
            options:
              type: dashboards
              dashboards:
                - 3--MLVZZk
                - G8wLrJIZk
                - vu8e0VWZk
                - LJ_uJAvmk
                - UbsSZTDik
