Harbor

The Harbor plugin can be used to access all your projects, repositories and artifacts from a Harbor instance. You can also show your projects, repositories and artifacts on kobs dashboards.

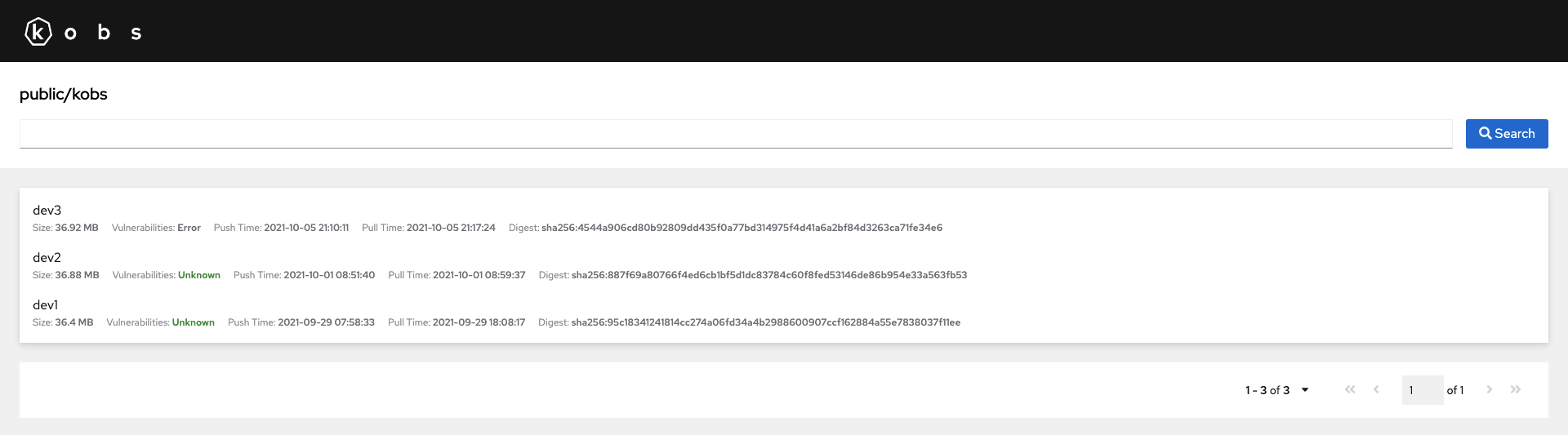

Artifacts

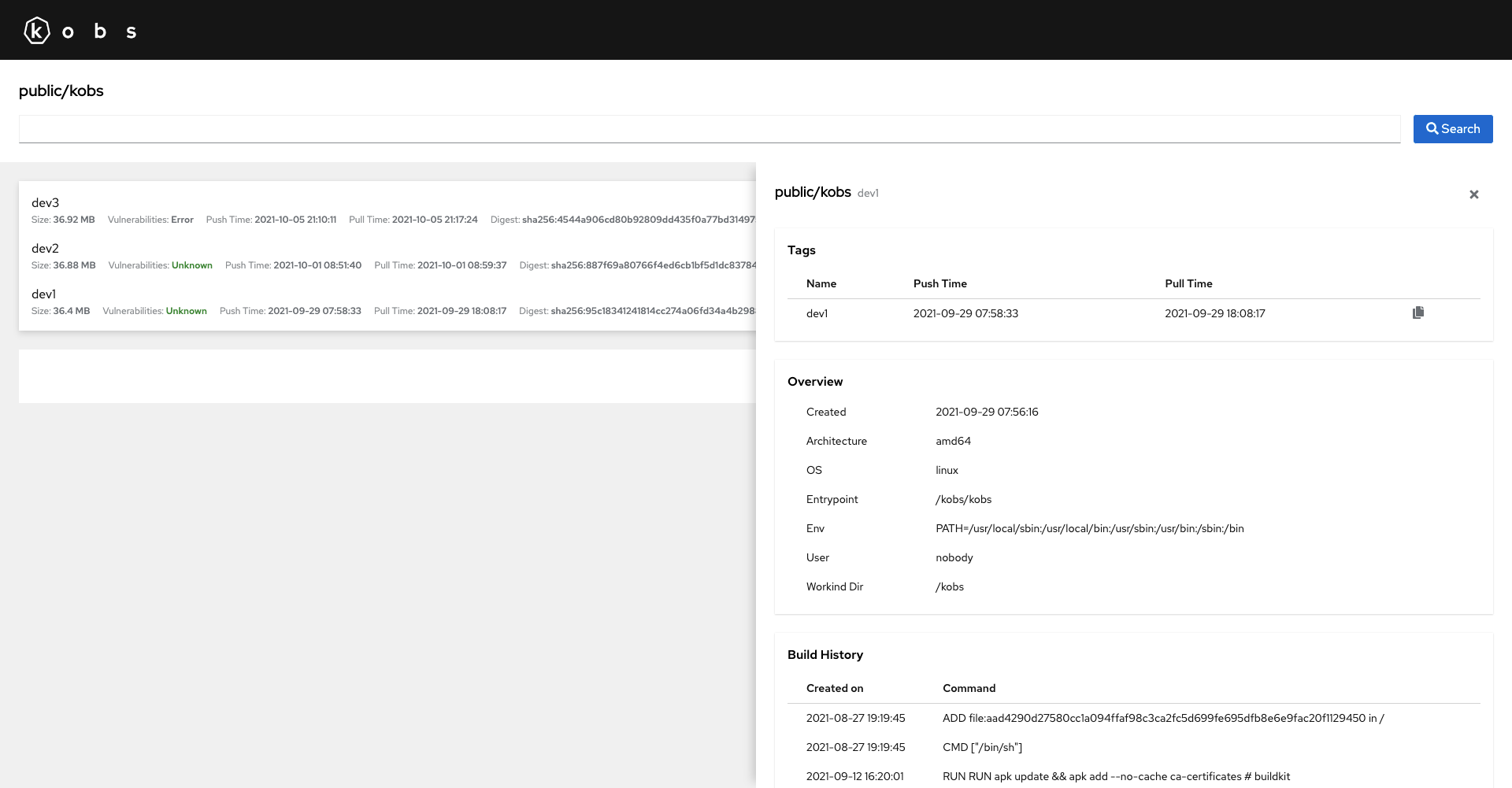

Artifacts Details

Configuration

To use the Harbor plugin the following configuration is needed in the satellites configuration file:

Field Type Description Required
name string The name of the Harbor plugin instance. Yes
type harbor The type for the Harbor plugin. Yes
options.address string Address of the Harbor instance. Yes
options.username string Username to access an Harbor instance via basic authentication. No
options.password string Password to access an Harbor instance via basic authentication. No
options.token string Token to access an Harbor instance via token based authentication. No
frontendOptions.address string Address of the Harbor instance. Yes
plugins:
  - name: harbor
    type: harbor
    options:
      address:
      username:
      password:
      token:
    frontendOptions:
      address:

Insight Options

Note

The Harbor plugin can not be used within the insights section of an application.

Variable Options

Note

The Harbor plugin can not be used to get a list of variable values.

Panel Options

The following options can be used for a panel with the Harbor plugin:

Field Type Description Required
type string The panel type. This could be projects, repositories or artifacts. Yes
repositories Repositories Details for the panel, when the type is repositories. No
artifacts Artifacts Details for the panel, when the type is artifacts. No

Repositories

Field Type Description Required
projectName string The name of the project, for which the repositories should be displayed. Yes
query string An optional query to filter the repositories by their name. No

Artifacts

Field Type Description Required
projectName string The name of the project, for which the repositories should be displayed. Yes
repositoryName string The name of the repository in the project, for which the artifacts should be displayed. Yes
query string An optional query to filter the artifacts by their tags. No

Notification Options

Note

The Harbor plugin can not be used to get a list of notifications.

Usage

The following dashboard shows all projects, all repositories from the public project and all artifacts from the kobs repository in the public project, where the tag contains dev.

---
apiVersion: kobs.io/v1
kind: Dashboard
metadata:
  name: harbor
  namespace: kobs
spec:
  title: Harbor
  rows:
    - panels:
        - title: Projects
          plugin:
            name: harbor
            type: harbor
            options:
              type: projects
        - title: Repositories
          plugin:
            name: harbor
            type: harbor
            options:
              type: repositories
              panel:
                projectName: public
        - title: Artifacts
          plugin:
            name: harbor
            type: harbor
            options:
              type: artifacts
              panel:
                projectName: public
                repositoryName: kobs
                query: dev
