Harbor

The Harbor plugin can be used to access all your projects, repositories and artifacts from a Harbor instance. You can also show your projects, repositories and artifacts on kobs dashboards.

Configuration

To use the Harbor plugin the following configuration is needed in the satellites configuration file:

Field	Type	Description	Required
name	string	The name of the Harbor plugin instance.	Yes
type	harbor	The type for the Harbor plugin.	Yes
options.address	string	Address of the Harbor instance.	Yes
options.username	string	Username to access an Harbor instance via basic authentication.	No
options.password	string	Password to access an Harbor instance via basic authentication.	No
options.token	string	Token to access an Harbor instance via token based authentication.	No
frontendOptions.address	string	Address of the Harbor instance.	Yes

plugins:
  - name: harbor
    type: harbor
    options:
      address:
      username:
      password:
      token:
    frontendOptions:
      address:

Insight Options

Note

The Harbor plugin can not be used within the insights section of an application.

Variable Options

Note

The Harbor plugin can not be used to get a list of variable values.

Panel Options

The following options can be used for a panel with the Harbor plugin:

Field	Type	Description	Required
type	string	The panel type. This could be projects, repositories or artifacts.	Yes
repositories	Repositories	Details for the panel, when the type is repositories.	No
artifacts	Artifacts	Details for the panel, when the type is artifacts.	No

Repositories

Field	Type	Description	Required
projectName	string	The name of the project, for which the repositories should be displayed.	Yes
query	string	An optional query to filter the repositories by their name.	No

Artifacts

Field	Type	Description	Required
projectName	string	The name of the project, for which the repositories should be displayed.	Yes
repositoryName	string	The name of the repository in the project, for which the artifacts should be displayed.	Yes
query	string	An optional query to filter the artifacts by their tags.	No

Usage

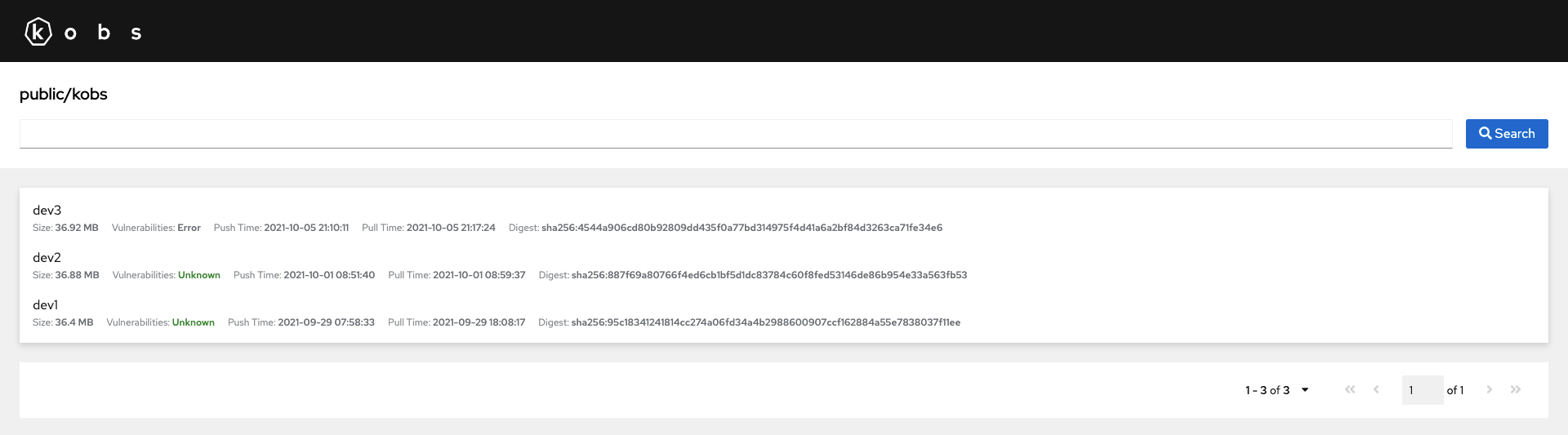

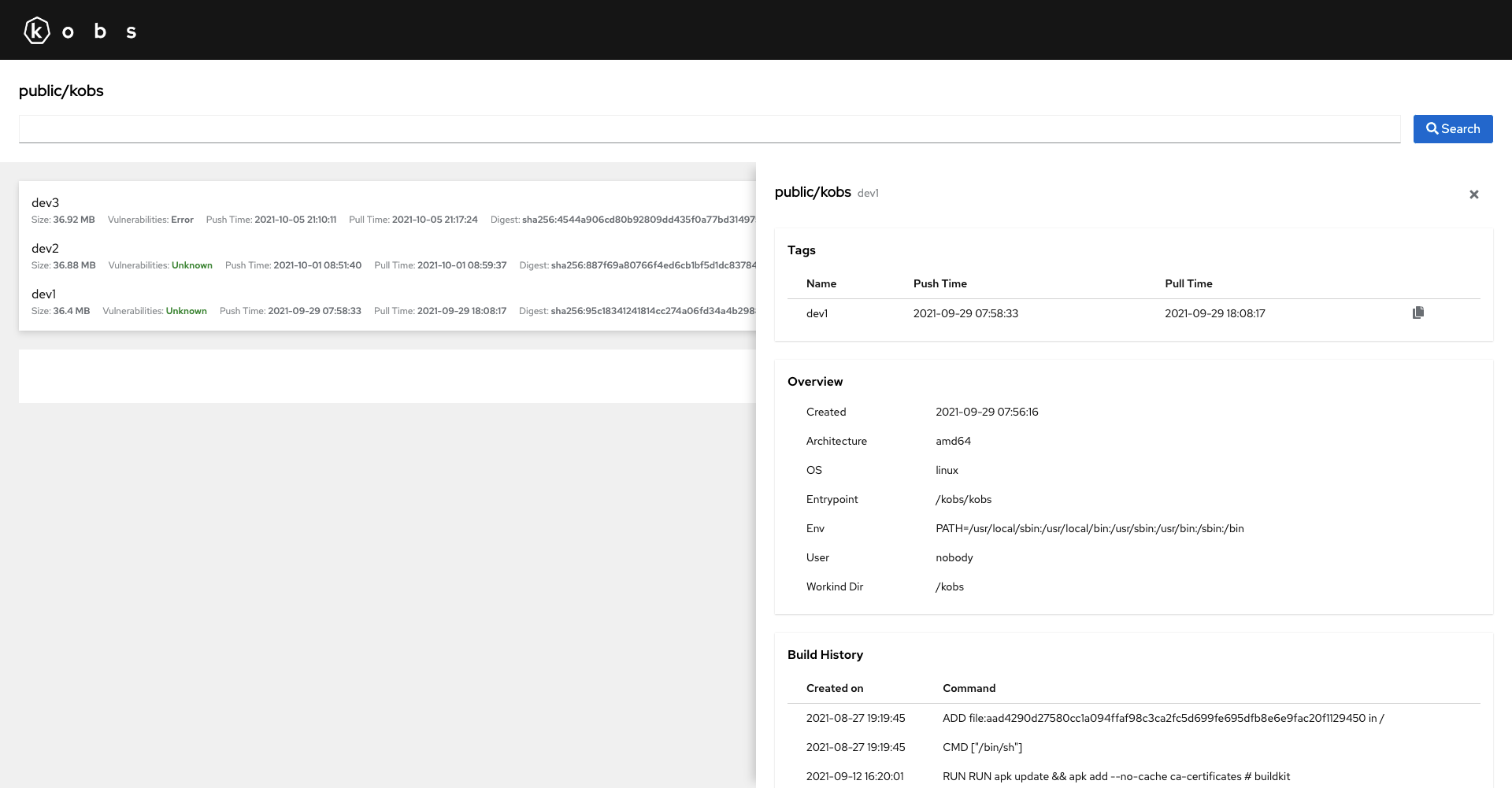

The following dashboard shows all projects, all repositories from the public project and all artifacts from the kobs repository in the public project, where the tag contains dev.

---
apiVersion: kobs.io/v1
kind: Dashboard
metadata:
  name: harbor
  namespace: kobs
spec:
  title: Harbor
  rows:
    - panels:
        - title: Projects
          plugin:
            name: harbor
            type: harbor
            options:
              type: projects
        - title: Repositories
          plugin:
            name: harbor
            type: harbor
            options:
              type: repositories
              panel:
                projectName: public
        - title: Artifacts
          plugin:
            name: harbor
            type: harbor
            options:
              type: artifacts
              panel:
                projectName: public
                repositoryName: kobs
                query: dev
