Dashboards

Dashboards are defined via the Dashboard Custom Resource Definition. Dashboards are used to add additional information for applications, users and teams via all the configured plugins.

Specification

Field	Type	Description	Required
description	string	Provide a descriptions for the dashboard with additional details.	No
hideToolbar	boolean	If this is true the toolbar will be hidden in the dashboard.	No
placeholders	[]Placeholder	A list of placeholders, which can be directly set by the user.	No
variables	[]Variable	A list of variables, where the values are loaded by the specified plugin.	No
rows	[]Row	A list of rows for the dashboard.	Yes

Placeholder

Field	Type	Description	Required
name	string	The name for the placeholder, which can be used in the dashboard via {% .<placeholder-name> %}.	Yes
description	string	An optional description, to provide more information how the placeholder is used.	No

Variable

Field	Type	Description	Required
name	string	The name of the variable, which can be used in the dashboard via {% .<variable-name> %}.	Yes
label	string	An optional label, which is shown in the UI instead of the variable name.	No
hide	boolean	Hide the variable in the UI.	No
plugin	Plugin	The plugin, which should be used to get the values for the variable.	Yes

Note

Dashboards are also supporting some special variables, which always can be used and must not be defined by a users. These variables are:

• __timeStart: The start time of the selected time range in seconds. This variable can be used via {% .__timeStart %} in a dashboard.
• __timeEnd: The end time of the selected time range in seconds. This variable can be used via {% .__timeEnd %} in a dashboard.

Row

Field	Type	Description	Required
title	string	The title for a row.	No
description	string	The description for the row, to provide additional details about the content of the row.	No
size	number	The size of the row. This must be a value between 1 and 12. The default value is 2. You can also use the special value -1 to not limit the height of the row. Note: When a dashboard makes use of the -1 value the Intersection Observer API is disabled, so that all dashboard panels are loaded at once.	No
panels	[]Panel	A list of panels for the row.	Yes

Panel

Field	Type	Description	Required
title	string	The title of the panel.	Yes
description	string	An optional description with additional information about the panel.	No
colSpan	number	The number of columns, which should be used by the panel. This must be a number between 1 and 12. The default value is 12.	No
rowSpan	number	The number of rows, which should be used by the panel. This must be a number between 1 and 12. The default value is 1.	No
plugin	Plugin	The plugin which should be displayed in the panel.	Yes

Example

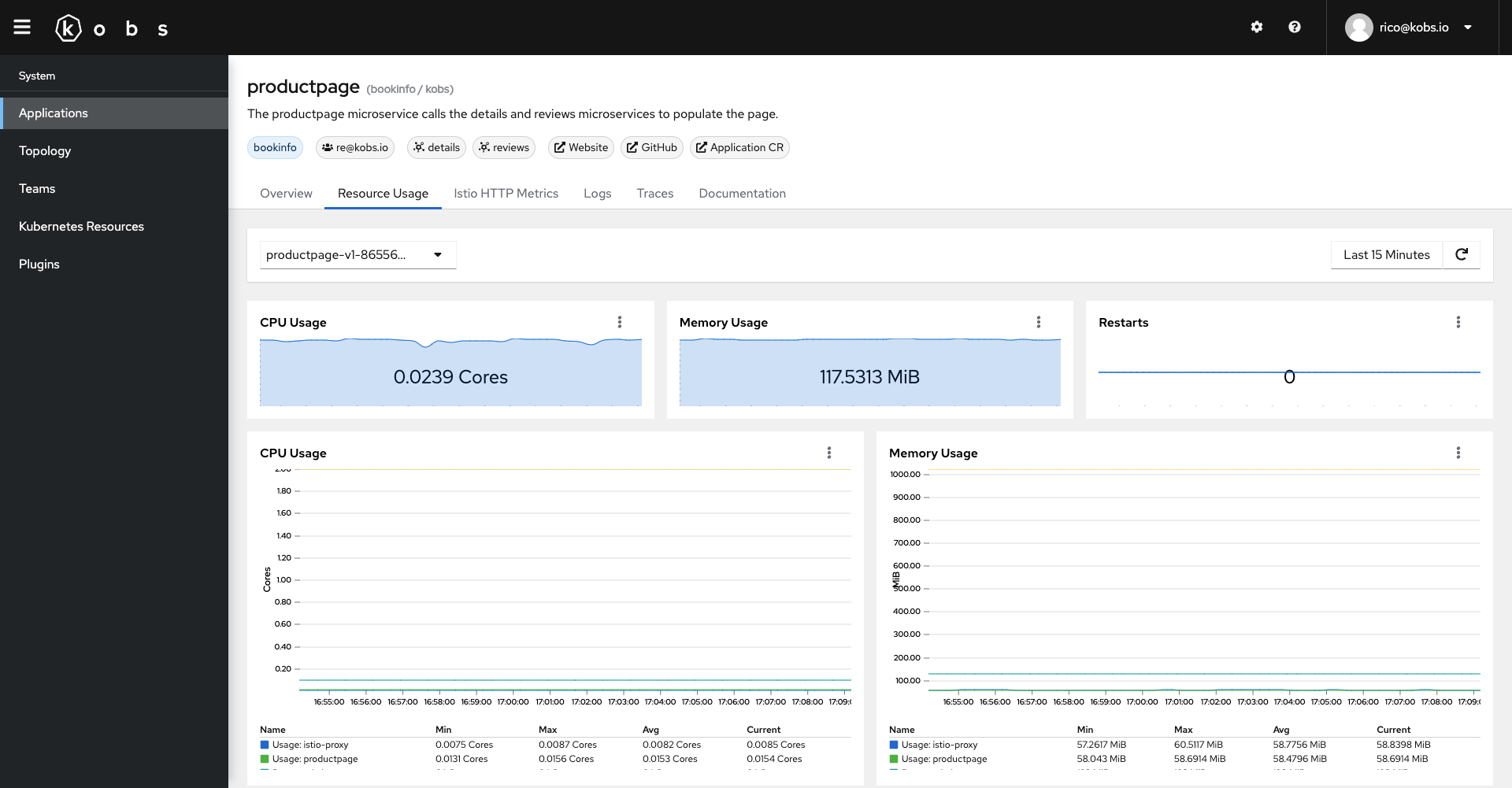

The following dashboard can be used to display the resource usage of the containers in a pod. It can be used within an application and can be customized via the namespace and pod placeholders.

---
apiVersion: kobs.io/v1
kind: Dashboard
metadata:
  name: resource-usage
  namespace: kobs
spec:
  description: Resources Usage of Pods
  placeholders:
    - name: namespace
      description: Namespace for the Pods
    - name: pod
      description: Pod selector
  variables:
    - name: var_pod
      label: Pod
      plugin:
        name: prometheus
        type: prometheus
        options:
          type: labelValues
          label: pod
          query: container_cpu_usage_seconds_total{namespace="{% .namespace %}", image!="", pod=~"{% .pod %}", container!="POD", container!=""}
          allowAll: false
  rows:
    - size: 1
      panels:
        - title: CPU Usage
          colSpan: 4
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: sparkline
              unit: Cores
              queries:
                - query: sum(rate(container_cpu_usage_seconds_total{namespace="{% .namespace %}", image!="", pod=~"{% .var_pod %}", container!="POD", container!=""}[2m]))
        - title: Memory Usage
          colSpan: 4
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: sparkline
              unit: MiB
              queries:
                - query: sum(container_memory_working_set_bytes{namespace="{% .namespace %}", pod=~"{% .var_pod %}", container!="POD", container!=""}) / 1024 / 1024
        - title: Restarts
          colSpan: 4
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: sparkline
              queries:
                - query: kube_pod_container_status_restarts_total{namespace="{% .namespace %}", pod=~"{% .var_pod %}"}
    - size: 3
      panels:
        - title: CPU Usage
          colSpan: 6
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: line
              unit: Cores
              legend: table
              queries:
                - label: "Usage: {% .container %}"
                  query: sum(rate(container_cpu_usage_seconds_total{namespace="{% .namespace %}", image!="", pod=~"{% .var_pod %}", container!="POD", container!=""}[2m])) by (container)
                - label: "Request: {% .container %}"
                  query: sum(kube_pod_container_resource_requests{namespace="{% .namespace %}", resource="cpu", pod=~"{% .var_pod %}", container!="POD", container!=""}) by (container)
                - label: "Limits: {% .container %}"
                  query: sum(kube_pod_container_resource_limits{namespace="{% .namespace %}", resource="cpu", pod=~"{% .var_pod %}", container!="POD", container!=""}) by (container)
        - title: Memory Usage
          colSpan: 6
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: line
              unit: MiB
              legend: table
              queries:
                - label: "Usage: {% .container %}"
                  query: sum(container_memory_working_set_bytes{namespace="{% .namespace %}", pod=~"{% .var_pod %}", container!="POD", container!=""}) by (container) / 1024 / 1024
                - label: "Request: {% .container %}"
                  query: sum(kube_pod_container_resource_requests{namespace="{% .namespace %}", resource="memory", pod=~"{% .var_pod %}", container!="POD", container!=""}) by (container) / 1024 / 1024
                - label: "Limits: {% .container %}"
                  query: sum(kube_pod_container_resource_limits{namespace="{% .namespace %}", resource="memory", pod=~"{% .var_pod %}", container!="POD", container!=""}) by (container) / 1024 / 1024
    - title: Network
      size: 3
      panels:
        - title: Bandwidth
          colSpan: 12
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: area
              unit: bytes/s
              queries:
                - label: Received
                  query: sum(irate(container_network_receive_bytes_total{namespace="{% .namespace %}", pod="{% .var_pod %}"}[2m])) by (pod)
                - label: Transmitted
                  query: -sum(irate(container_network_transmit_bytes_total{namespace="{% .namespace %}", pod="{% .var_pod %}"}[2m])) by (pod)
        - title: Rate of Packets
          colSpan: 6
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: area
              unit: bytes/s
              queries:
                - label: Received
                  query: sum(irate(container_network_receive_packets_total{namespace=~"{% .namespace %}", pod=~"{% .var_pod %}"}[2m])) by (pod)
                - label: Transmitted
                  query: -sum(irate(container_network_transmit_packets_total{namespace=~"{% .namespace %}", pod=~"{% .var_pod %}"}[2m])) by (pod)
        - title: Rate of Packets Dropped
          colSpan: 6
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: area
              unit: bytes/s
              queries:
                - label: Received
                  query: sum(irate(container_network_receive_packets_dropped_total{namespace=~"{% .namespace %}", pod=~"{% .var_pod %}"}[2m])) by (pod)
                - label: Transmitted
                  query: -sum(irate(container_network_transmit_packets_dropped_total{namespace=~"{% .namespace %}", pod=~"{% .var_pod %}"}[2m])) by (pod)
    - title: "Resource Usage for all Pods"
      panels:
        - title: Table
          plugin:
            name: prometheus
            type: prometheus
            options:
              type: table
              queries:
                - label: "{% .pod %}"
                  query: sum(rate(container_cpu_usage_seconds_total{namespace="{% .namespace %}", image!="", pod=~"{% .pod %}", container!="POD", container!=""}[2m])) by (pod)
                - label: "{% .pod %}"
                  query: sum(kube_pod_container_resource_requests{namespace="{% .namespace %}", resource="cpu", pod=~"{% .pod %}", container!="POD", container!=""}) by (pod)
                - label: "{% .pod %}"
                  query: sum(kube_pod_container_resource_limits{namespace="{% .namespace %}", resource="cpu", pod=~"{% .pod %}", container!="POD", container!=""}) by (pod)
                - label: "{% .pod %}"
                  query: sum(container_memory_working_set_bytes{namespace="{% .namespace %}", pod=~"{% .pod %}", container!="POD", container!=""}) by (pod) / 1024 / 1024
                - label: "{% .pod %}"
                  query: sum(kube_pod_container_resource_requests{namespace="{% .namespace %}", resource="memory", pod=~"{% .pod %}", container!="POD", container!=""}) by (pod) / 1024 / 1024
                - label: "{% .pod %}"
                  query: sum(kube_pod_container_resource_limits{namespace="{% .namespace %}", resource="memory", pod=~"{% .pod %}", container!="POD", container!=""}) by (pod) / 1024 / 1024
              columns:
                - name: pod
                  title: Pod
                - name: value-1
                  title: CPU Usage
                  unit: Cores
                - name: value-2
                  title: CPU Requests
                  unit: Cores
                - name: value-3
                  title: CPU Limits
                  unit: Cores
                - name: value-4
                  title: Memory Usage
                  unit: MiB
                - name: value-5
                  title: Memory Requests
                  unit: MiB
                - name: value-6
                  title: Memory Limits
                  unit: MiB
