Helm

The Helm plugin can be used to manage Helm releases within kobs.

Configuration

To use the Istio plugin the following configuration is needed in the satellites configuration file:

Field	Type	Description	Required
name	string	The name of the Istio plugin instance.	Yes
type	istio	The type for the Istio plugin.	Yes
options.permissionsEnabled	string	Enable the permission handling. An example of the permission format can be found in the usage section of this page.	No

plugins:
  - name: istio
    type: istio
    options:
      permissionsEnabled: true

Insight Options

Note

The Istio plugin can not be used within the insights section of an application.

Variable Options

Note

The Istio plugin can not be used to get a list of variable values.

Panel Options

The following options can be used for a panel with the Istio plugin:

Field	Type	Description	Required
type	string	The panel type. This could be releases or releasehistory.	Yes
clusters	[]string	A list of cluster for which the Helm releases should be shown.	Yes
namespaces	[]string	A list of namespaces for which the Helm releases should be shown.	Yes
name	string	The name of the Helm release for whih the history should be shown, when the type is releasehistory.	No

Usage

Permissions

You can define fine grained permissions to access your Helm releases via kobs. The permissions are defined via the permissions.plugins[].permissions field of a User or Team. The team membership of an user is defined via the values of the X-Auth-Request-Groups header.

In the following example each member of team1@kobs.io will get access to all Helm releases, while members of team2@kobs.io can only view the kobs Helm release in the kobs namespace and the prometheus release in the monitoring namespace:

team1

---
apiVersion: kobs.io/v1
kind: Team
metadata:
  name: team1
spec:
  group: team1@kobs.io
  permissions:
    plugins:
      - satellite: "*"
        name: "*"
        type: "*"
      - satellite: "*"
        name: helm
        type: helm
        permissions:
          - clusters:
              - "*"
            namespaces:
              - "*"
            names:
              - "*"

team2

---
apiVersion: kobs.io/v1
kind: Team
metadata:
  name: team2
spec:
  group: team2@kobs.io
  permissions:
    plugins:
      - satellite: "*"
        name: "*"
        type: "*"
      - satellite: "*"
        name: helm
        type: helm
        permissions:
          - clusters:
              - "kobs-demo"
            namespaces:
              - "kobs"
            names:
              - "kobs"
          - clusters:
              - "kobs-demo"
            namespaces:
              - "monitoring"
            names:
              - "prometheus"

Example Dashboard

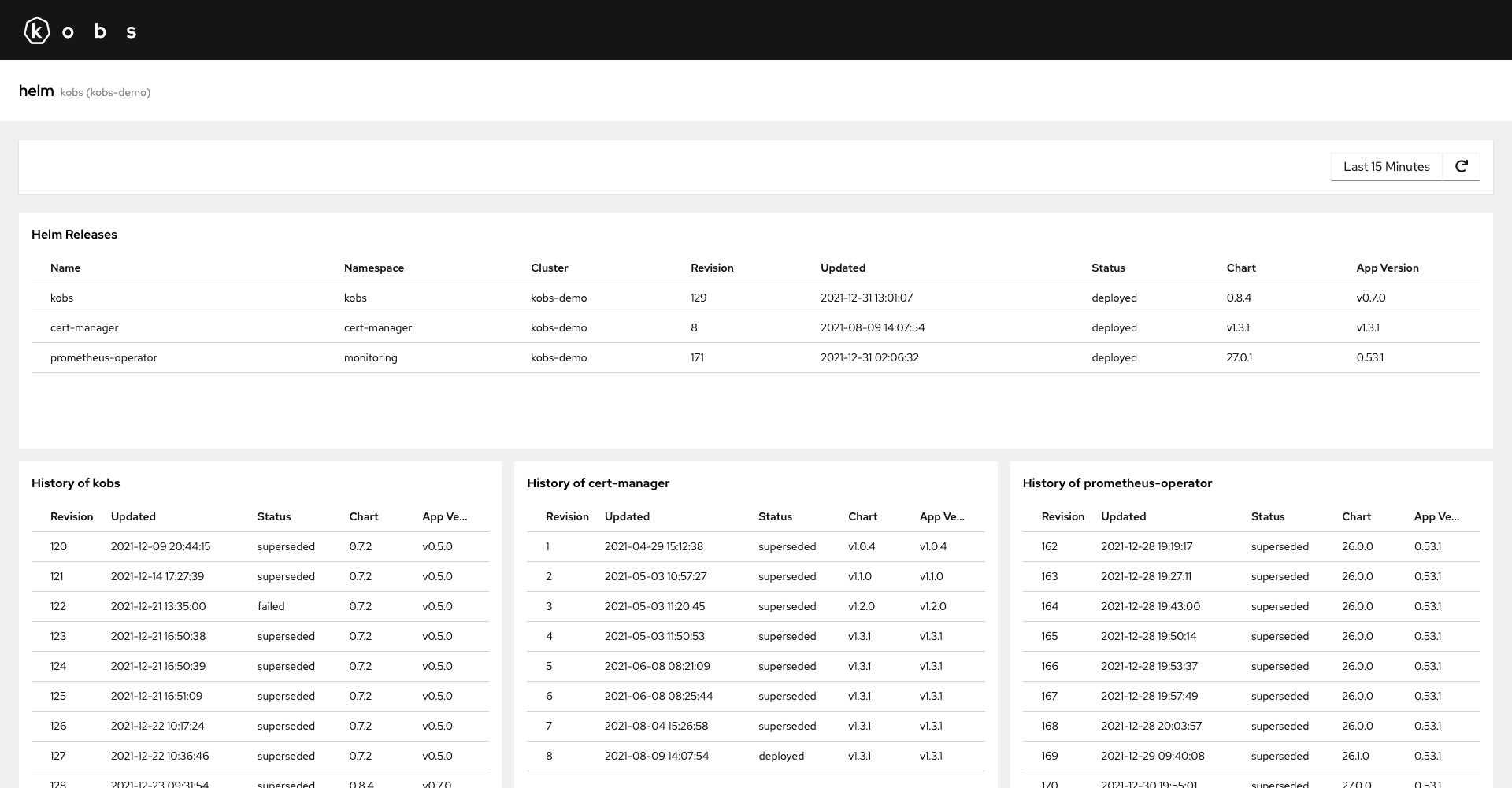

The following dashboards shows all Helm releases from the kobs and monitoring namespace and the history of the kobs and prometheus-operator releases.

---
apiVersion: kobs.io/v1
kind: Dashboard
spec:
  rows:
    - panels:
        - title: Helm Releases
          plugin:
            name: helm
            type: helm
            options:
              type: releases
              clusters:
                - "<% .cluster %>"
              namespaces:
                - kobs
                - cert-manager
                - monitoring
    - size: 3
      panels:
        - title: History of kobs
          colSpan: 4
          plugin:
            name: helm
            type: helm
            options:
              type: releasehistory
              clusters:
                - "<% .cluster %>"
              namespaces:
                - kobs
              name: kobs
        - title: History of cert-manager
          colSpan: 4
          plugin:
            name: helm
            type: helm
            options:
              type: releasehistory
              clusters:
                - "<% .cluster %>"
              namespaces:
                - cert-manager
              name: cert-manager
        - title: History of prometheus-operator
          colSpan: 4
          plugin:
            name: helm
            type: helm
            options:
              type: releasehistory
              clusters:
                - "<% .cluster %>"
              namespaces:
                - monitoring
              name: prometheus-operator
