SonarQube

The SonarQube plugin can be used to view all projects with the measures from a SonarQube instance or SonarCloud.

Configuration

To use the SonarQube plugin the following configuration is needed in the satellites configuration file:

Field	Type	Description	Required
name	string	The name of the SonarQube plugin instance.	Yes
type	sonarqube	The type for the SonarQube plugin.	Yes
options.address	string	Address of the SonarQube instance.	Yes
options.username	string	Username to access a SonarQube instance via basic authentication.	No
options.password	string	Password to access a SonarQube instance via basic authentication.	No
options.organization	string	The name of the organization for which the projects should be shown.	No
options.metricKeys	[]string	An optional list of metric keys which should be displayed for all projects. If this value is not provided the following list will be used: alert_status, bugs, reliability_rating, vulnerabilities, security_rating, security_hotspots_reviewed, security_review_rating, code_smells, sqale_rating, coverage, duplicated_lines_density.	No
frontendOptions.address	string	The address of the SonarQube instance, which can be accessed by the user.	No

plugins:
  - name: sonarqube
    type: sonarqube
    options:
      address:
      username:
      password:
      organization:
      metricKeys:
    frontendOptions:
      address:

Insight Options

Note

The SonarQube plugin can not be used within the insights section of an application.

Variable Options

Note

The SonarQube plugin can not be used to get a list of variable values.

Panel Options

The following options can be used for a panel with the SonarQube plugin:

Field	Type	Description	Required
project	string	The key of the SonarQube project.	Yes
metricKeys	[]string	An optional list of metric keys, which should be displayed for the project. If this value is not provided the globally configured default value will be used. A list of all available metrics can be retrieved from the /api/metrics/search API endpoint of a SonarQube instance.	No

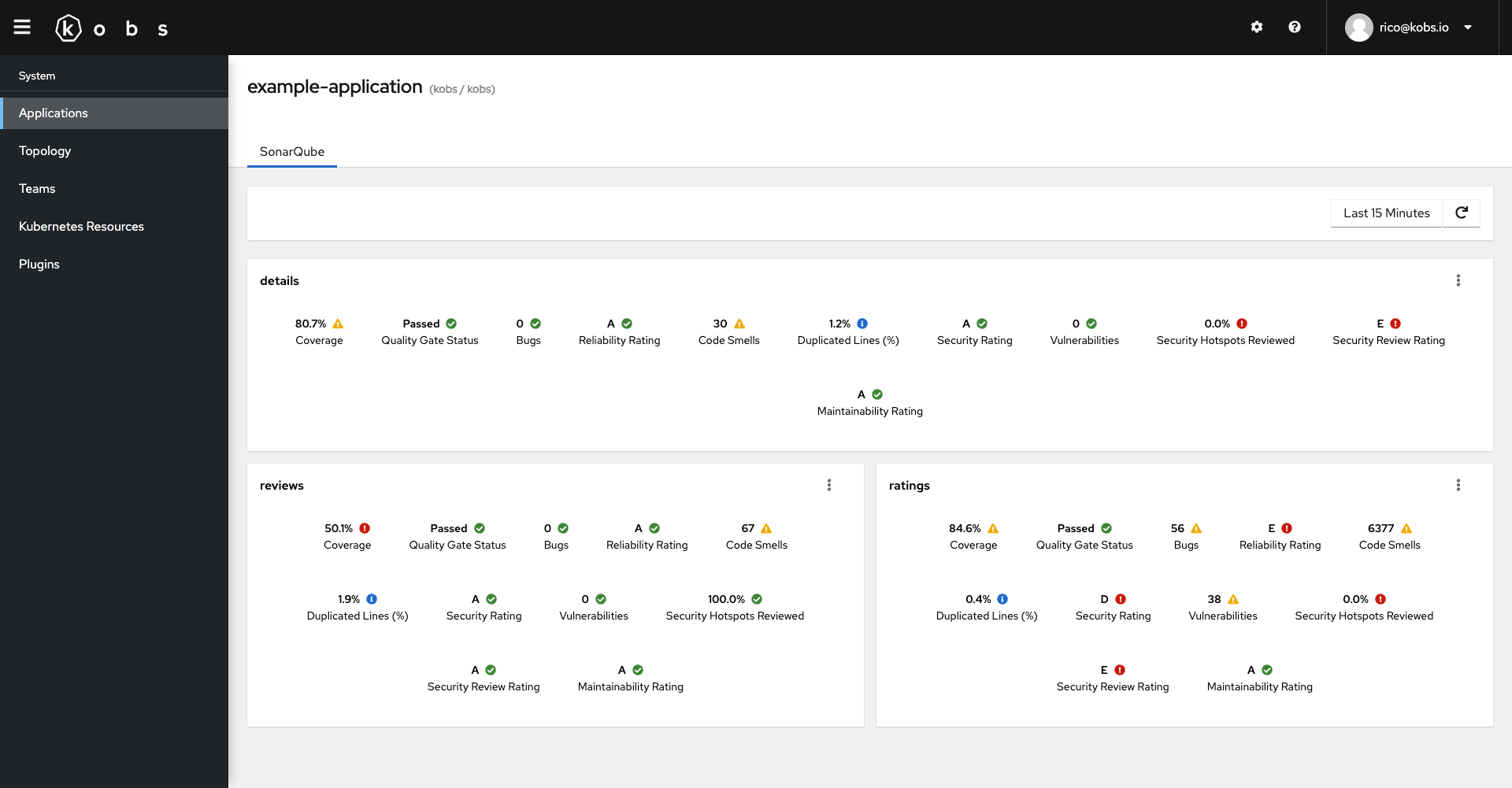

Usage

---
apiVersion: kobs.io/v1
kind: Application
metadata:
  name: example-application
  namespace: kobs
spec:
  dashboards:
    - title: SonarQube
      inline:
        rows:
          - size: -1
            panels:
              - title: details
                plugin:
                  name: sonarqube
                  type: sonarqube
                  options:
                    project: details
          - size: -1
            panels:
              - title: reviews
                colSpan: 6
                plugin:
                  name: sonarqube
                  type: sonarqube
                  options:
                    project: reviews
              - title: ratings
                colSpan: 6
                plugin:
                  name: sonarqube
                  type: sonarqube
                  options:
                    project: ratings
